Sliding Anchor

Sliding Anchors

Sliding Anchors

Ancon SAH Sliding Anchors

Ancon SAH Sliding Anchors have stems which fit within the cavity and accept ties that slide to accommodate vertical movement. They are available with five different head options.

From left to right: SAH-U, SAH-UF, SAH-UO, SAH-UT, SAH-UC

The standard fixing hole is 12mm diameter to suit Ancon M10 Expansion Bolts (concrete), Ancon M10 Set Screws (steel) or M10 T-Head Bolts to fit Ancon 28/15 Channel. Ancon SAH Sliding Anchors have a design resistance of 755N per stem when the upper tie is within 75mm of the fixing.

All sliding anchors are manufactured to suit individual requirements.

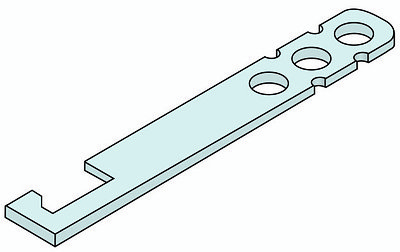

SPJ Sliding Anchor Clip-on Tie

The SPJ Sliding Anchor Clip-on Tie has been designed for easy installation from any position on the sliding anchor stem, and replaces the Ancon SPI Tie. The SPJ tie features a cam-lock design to enable the tie to be rotated into place at any height, even if a tie has already been installed lower down the stem.

Ancon SPJ Clip-On Tie
Ancon SPJ Clip-On Tie for SAH Sliding Anchors

*















SIS Sliding Anchor Ties

Two-way ties with safety ends are available for building into two leaves of a cavity wall.

SIS
