Wall Ties for Brick-to-Block Construction

Ties for Brick-to-Block Construction

NBS BIM

Building Information Modelling

For BIM Objects of these products, please click here or visit www.nationalbimlibrary.com/ancon.

Ancon ST1 Wall Tie
Type 1 Tie to PD 6697 (Masonry Heavy Duty)*

The Ancon ST1 is suitable for cavities from 50mm to 225mm and can be used for all types of building of any height, anywhere in the British Isles. The section that spans the cavity has a series of holes to provide water drips. This allows the same tie to be used in insulated cavities as well as open cavities.

Lengths
200mm for 50-75mm cavities
225mm for 76-100mm cavities
250mm for 101-125mm cavities
275mm for 126-150mm cavities
300mm for 150-175mm cavities
325mm for 176-200mm cavities
350mm for 201-225mm cavities

Type 1 performance is declared in M2 mortar


Staifix RT2 General Purpose Wall Tie
Type 2 Tie to PD 6697 (Masonry General Purpose)*

Replaces the Double Triangle Tie

The Staifix RT2 is suitable for cavities from 50mm to 150mm and can be used in the construction of domestic houses and small commercial buildings up to 15 metres in height. Altitude and wind speed restrictions may apply.

The Staifix RT2 is CE Marked and can be used in line with NHBC standards.

RT2
Lengths
200mm for 50-75mm cavities
225mm for 76-100mm cavities
250mm for 101-125mm cavities
275mm for 126-150mm cavities


Staifix HRT4 Housing Wall Tie (Type 4/Type A)
Type 4 Tie to PD 6697 (Masonry Light Duty)*

Replaces the Butterfly Tie

The Staifix HRT4 is suitable for cavities from 50mm to 150mm and can be used in the construction of domestic houses up to 10 metres in height. Altitude and wind speed restrictions may apply.

Independent tests have proven the Staifix HRT4 has a measured dynamic stiffness of <4.8MN/m3 at a cavity of 50-100mm and 125-150mm and is therefore suitable for internal separating (party) walls of any height in new-build attached dwellings with these cavities.

The Staifix HRT4 is CE Marked and can be used in line with NHBC standards.

The HRT4 can be used with all approved robust details for cavity masonry separating walls, whether traditional or thin-joint blockwork. Use of these details eliminates the need for pre-completion sound testing.

HRT4
Lengths
200mm for 50-75mm cavities
225mm for 76-100mm cavities
250mm for 101-125mm cavities
275mm for 126-150mm cavities

Ancon Teplo Range

The Ancon Teplo-BF is available in a range of diameters and lengths to suit cavities from 50mm to 450mm.

The range comprises Teplo-BF1 (Type 1), Teplo-BF2 (Type 2), Teplo-BF3 (Type 3) and Teplo-BF4 (Type 4). Decreasing wall tie centres from the standard 2.5/sq.m can increase the tie's performance e.g. Type 3 to Type 2. Click here for more information on wall tie types.

Ancon Teplo-BF1 Wall Tie
Type 1 Tie to PD 6697
(Masonry Heavy Duty)*

Teplo-BF1 Wall Tie

The Ancon Teplo-BF is a composite wall tie manufactured from pultruded basalt fibres. It has a thermal conductivity of 0.7W/mK.

The type 1 Teplo-BF1 is BBA-approved in lengths of 200, 225, 250 and 275mm to suit cavities from 50mm to 150mm.

Ancon Teplo-BF2 Wall Tie
Type 2 Tie to PD 6697
(Masonry General Purpose)*

Teplo-BF2 Wall Tie

The Ancon Teplo-BF is a composite wall tie manufactured from pultruded basalt fibres. It has a thermal conductivity of 0.7W/mK.

The type 2 Teplo-BF is BBA-approved in lengths of 200, 225, 250, 275, 300, 325, 350, 375, 400 and 425mm to suit cavities from 50mm to 300mm.

Ancon Teplo-BF3 Wall Tie
Type 3 Tie to PD 6697
(Masonry Basic)*

Teplo-BF3 Wall Tie

The Ancon Teplo-BF is a composite wall tie manufactured from pultruded basalt fibres. It has a thermal conductivity of 0.7W/mK.

The type 3 Teplo-BF is BBA-approved in lengths of 450, 475, 500 and 525mm to suit cavities from 301 to 400mm.

Ancon Teplo-BF4 Wall Tie
Type 4 Tie to PD 6697
(Masonry Light Duty)*

Teplo-BF4 Wall Tie

The Ancon Teplo-BF is a composite wall tie manufactured from pultruded basalt fibres. It has a thermal conductivity of 0.7W/mK.

The type 4 Teplo-BF is BBA-approved in lengths of 200, 225 and 250mm to suit cavities from 50mm to 125mm, and 550mm and 575mm to suit cavities from 401-450mm.

*Altitude and wind speed restrictions apply. For complete information on the field of use of wall ties please refer to PD 6697: 2010 (Table 12) and Approved Document E.

Ancon Teplo-BFR

Teplo-BFR Range

The Teplo-BFR is a low thermal conductivity wall tie manufactured from basalt-fibres that features a plain end for resin anchoring into an existing structure and a moulded safety end for building into a new bed joint.

It is ideal for new-build cavity wall construction where mortar joints do not align e.g. thin-joint blockwork, or in retrofit applications where a new leaf of masonry and insulated cavity is being constructed against a pre-existing masonry or concrete wall.

Available in 16 standard lengths, Teplo-BFR is suitable for cavities from 75mm to 450mm. The design embedment is 70mm in the inner leaf (resin) and 65mm in the outer leaf (mortar). It is a 7mm diameter wall tie, requiring a 10mm drill bit/hole. FIS VT 380 chemical anchor resin is available from Ancon for use with Teplo-BFR.

Tie Type to PD6697 is dependent on the strength of the substrate and a pull-out test is recommended on site. Ancon’s test programme indicates Type 1 in 75-150mm cavities, Type 2 in 175-300mm cavities, Type 3 in 325-400mm cavities and Type 4 in 425-450mm cavities.

TeploTies

Plain-ended TeploTies, the original basalt-fibre wall tie, are available. They can be used in new-build cavity applications and resin-fixed in remedial/retrofit projects. Click here for more information.

Build It Awards 2012 - Winner - Best Innovation in Insulation

The TeploTie low thermal conductivity wall tie was voted "Best Innovation in Insulation" at the 2012 Build It Awards.

For more information click here.



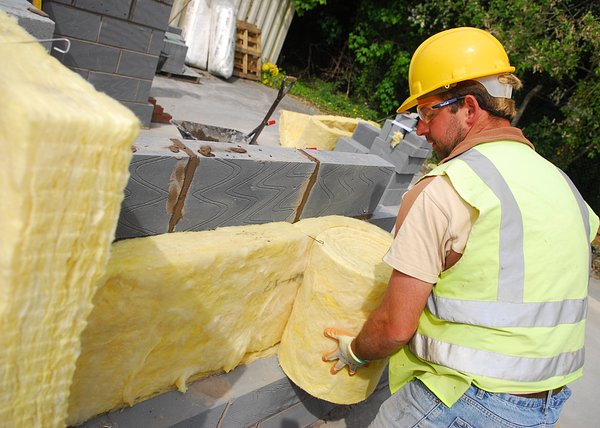

What is a wall tie?

Wall ties, sometimes called ‘brick ties’, are used in buildings with cavity walls. They are used to join the two leaves of a cavity wall together.
